new Heat Mat for Livestock 13.5 Inch X 48Inch
$249.00
Sale price
$249.00
Regular price
Skip to product information

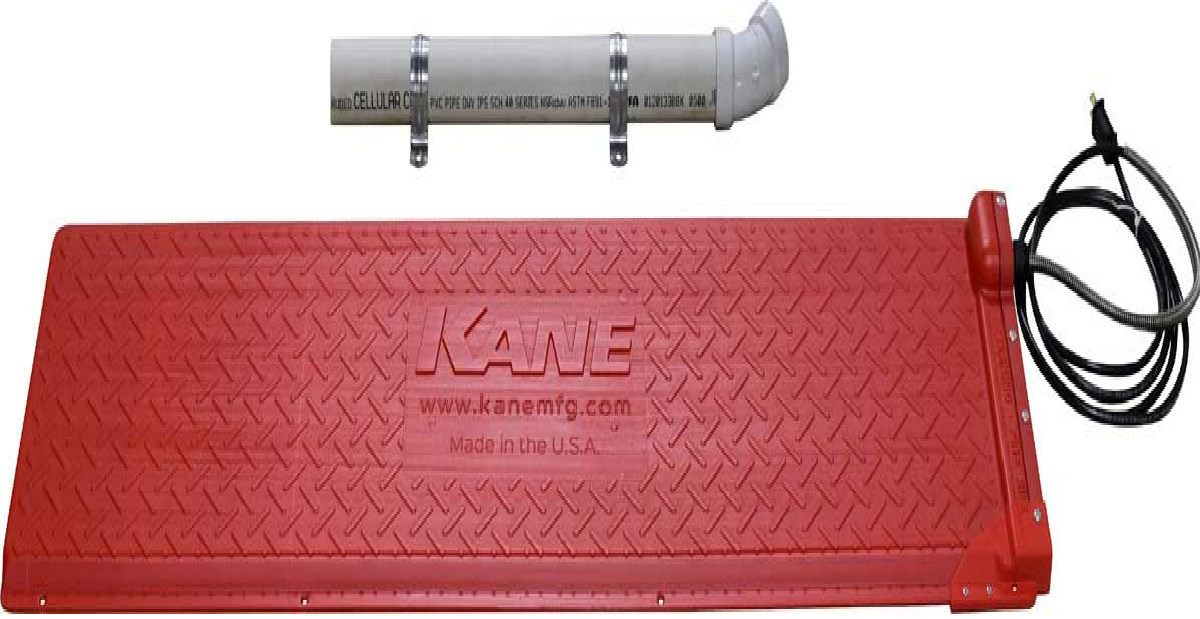

The electric heat mat for livestock is made of a high density durable polyethylene. The swine mat is 20% more energy efficient with a larger heated surface and uses less than 100 watts per litter. An insulated bottom prevents heat loss to the ground. A poly pipe, poly elbow, and clamps are included to prevent pigs from chewing on the cord. Operates at 90-95º F.
new Heat Mat for Livestock 13.5 Inch X 48Inch
$249.00
Sale price
$249.00
Regular price
Read all instructions as provided with original packaging.
SIZE 13.5 Inch X 48Inch
Included with 20" (1-1/2 dia) PVC cord protector, 10' cord; comes with 45° elbow and 2 mounting brackets.
The heating element is insulated on the bottom and radiates heat to the top surface. Uses 110-120 AC. Features beveled edges and an extra support rod. Can be installed with or without thermostat-based temperature controls. When installed
without
temperature controls, mat will heat to a constant temperature of 37°F above ambient temperature.
Heat Mats run 37 degrees above the ambient temperature of the location it is installed.
•
Read all instructions as provided with original packaging.
• Inspect the power cord before using.
• Caution: Use Indoors
• Do Not Immerse
• Protect the power cord from all animals and reptiles.
Heat Mats are designed to provide a warm bed for animals in creep or resting areas, free stalls, individual
huts, nursery pens, whelping boxes or any area where supplemental heat is needed.
**WARNING FIRE RISK**
• Do not cover this appliance with any foreign materials.
• This unit is a heat radiating appliance for animals.
• Do not have any foreign materials within a 10' radius of the heat mat installation area.
INSTALLATION - (Farrowing Crate or Free Stall Creep Areas)
1. A UL or CE listed thermostat control must be installed to control heat mats to the temperature the
animal needs and is comfortable with. (thermostat control not part of this mat)
2. All Heat Mats must be anchored to the flooring. Anchoring holes are provided on the exterior
flange edge of each heat mat for your convince.
3. Heavy-duty plastic electric cinch pull ties are recommended for securing mats to slatted floors.
4. Electric power supply cords must be protected with a cord cover shield. You can purchase a 1-½
inch PVC conduit for cord protection
